USB 3.0/3.1 Gen 1 A to BActive Extension Cable

FireNEX™-uLINK

USB 3.0 SuperSpeed Active Cable, A to B

To break the 3 meter practical length barrier of USB 3.0 with assured reliability, FireNEX™-uLINK-S series was developed to extend USB 3.0 A to B signal up to 20 meters with custom options available for lengths and connector selections.

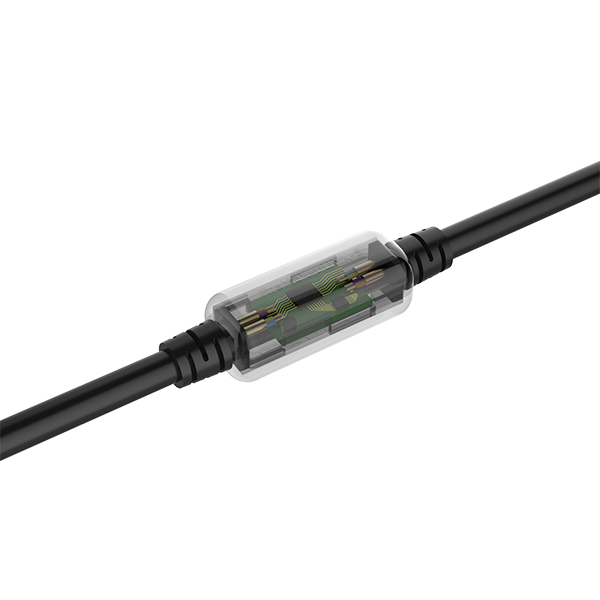

Unlike other USB 3.0 extension cables, FireNEX™-uLINK-S provides a A to B single-cable extension solution for USB SuperSpeed 5Gbps by embedding repeating module(s) in between the cable. With USB 2.0 backward compatibility and bus powered feature, FireNEX™-uLINK-S is the ideal solution for Video Conferencing, Machine Vision, Medical Imaging and many other fields.

FireNEX™-uLINK-S was awarded a 2015 Vision System Design Innovation Prize.

Related Products

FireNEX-ULKS08
8 m (26.2 ft)
USB 3.0 A/M to B/M
Buy Inquire
FireNEX-ULKS10
10 m (32.8 ft)
USB 3.0 A/M to B/M
Buy Inquire
FireNEX-ULKS12
12 m (39.4 ft)
USB 3.0 A/M to B/M
Buy Inquire
FireNEX-ULKS16
16 m (52.5 ft)
USB 3.0 A/M to B/M

(For hub and externally powered device use only)

Buy Inquire
FireNEX-ULKP16
16 m (52.5 ft)
USB 3.0 A/M to B/M
Inquire
FireNEX-ULKS20
20 m (65.6 ft)
USB 3.0 A/M to B/M

(For hub and externally powered device use only)

Buy Inquire

Features

  • Extends USB 3.0 up to 20 Meters with superior signal quality
  • Transfers SuperSpeed at data rate up to 5Gbps
  • USB 2.0 backward compatible
  • Plug and Play, no driver installation needed
  • Bus powered from host PC, no external power supply needed
  • Slim repeater box form factor, ideal for wall conduit
  • High flex life robotic cable option available

Specifications

EXTENSION RANGE
USB 3.0/USB 3.1 Gen 1
Up to 20m (60ft.)
DATA RATE
USB 3.0/USB 3.1 Gen 1
5 Gb/s
Backward Compatible USB 2.0
480 Mb/s
MECHANICAL
Repeater Box Dimension
16 x 16 x 40 mm (0.63 x 0.63 x 1.57”)
Cable Diameter
6.4 mm (0.27”)
Jacket Material
PVC, Black
USB Connector on Host Side
USB 3.0 Std-A(USB3 Vision Locking Connector Available)
USB Connector on Device Side
USB 3.0 Std-B(USB3 Vision Locking Connector Available)
POWER SUPPLY
Power Source
Bus Power
Available Power to Device
5V, up to 900mA
ENVRIONMENTAL
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40ºC to 80ºC (-40ºF to 176ºF)
Operating Humidity
20% to 80% relative humidity, non-condensing
Storage Humidity
10% to 90% relative humidity, non-condensing
COMPLIANCE AND COMPATIBLITY
Connectivity
USB 3.0/USB 3.1 Gen 1, USB 2.0
Machine Vision
AIA USB3 Vision Compliant
EMC
FCC (Class B), CE (Class B)
Environmental
RoHS
Flammability
VW-1
SUPPORT
Warranty
1-year Manufacture Warranty

Helpful Links

FAQ

Q: Is FireNEX™-uLINK backward compatible with USB 2.0?
A: Yes, the FireNEX™-uLINK is compatible with USB 2.0 peripherals.

Q: What length does the FireNEX™-uLINK support?
A: The FireNEX™-uLINK can support up to 16 meters.

Q: Is it possible to have FireNEX™-uLINK made from high flex life USB3 cable to support robotic application?
A: Yes, please contact Newnex support for further information.

Q: Do I need to install a driver in order to use the FireNEX™-uLINK
A: No, you do not need to install a driver. You can use the FireNEX™-uLINK as you would with a regular USB 3.0 cable.

Q: Where can the RoHS Certificate for FireNEX™-uLINK be found?
A: FireNEX™-uLINK Rohs Certifcation can be found in Newnex's FireNEX™ Repeaters Certifcate.

Installation Setup

USB 3.0 Active Repeater Cable
